Scout X4 – Modifications

I have now abandoned my Scout and support for it and have built a DJI Flame Wheel F550 ARF kit.
This pages will still be hosted for your reference only, comments have been closed.
For further support, please join the new Facebook Walkera Scout X4 and Tali H500 Support Group and ask your questions there.

WARNING: Proceed with these mods at your own risk!!! These are not official Walkera suggested modifications and will likely void your warranty! If you bought from a reputable dealer please check with them first! If you bought directly from Walkera, good luck getting any response from them – or any warranty for that matter. Hopefully these mods will keep you flying, but I will not be held responsible for any damage or injury if you choose to proceed.

Some of these are currently necessary to stop you Scout from malfuntioning mid air and crashing!! These are hardware issues from the manufacturer – Walkera, you owe me a Scout!
Firstly, if you can’t solder, it’s time to learn or perhaps you shouldn’t own a Scout X4. When soldering, always heat the work area/wire first and let the heated wire melt the solder, not the iron – you will get a much better bond. Try not to heat the area up for too long or you may melt or destroy something it is connected to! – always leave a reasonable length of wire from a circuit board.
Time to take the lid off the Scout.
Protect and support your GPS antenna with foam Remove the battery and gimbal, turn Scout upside down.
There are two phillips head screws buried deep either side of the battery bay at the back. The rest (18) are 1.5M hex screws. The screws on the tips of each arm are smaller.
You don’t need to undo the motor covers on the bottom of each arm unless you want to check your motor screws or remove your motors.
You don’t need to undo the leg retract servo retainers to get the top of the Scout.

An issue has been identified by Bo Loretzen that in certain instances of a leg retract servo failing an shorting, the motherboard can be damaged. If this happened mid air it can cause a crash! The solution is to insert a .5A fuse on the red wire running from the retracts to the bluetooth module as below:

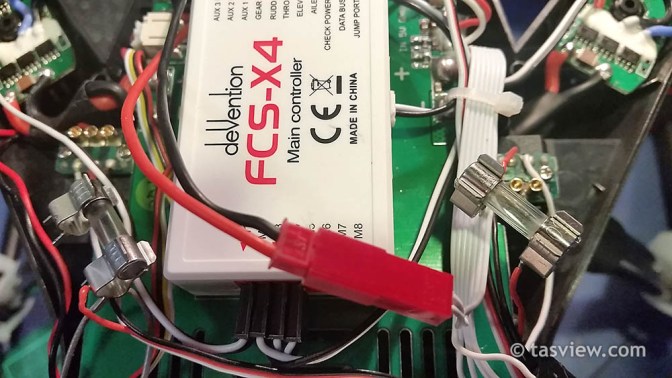

Scout x4 Leg Servo Fuses
Scout x4 Leg Servo Fuses

I couldn’t get pico fuses locally so I used these .5A quick blow glass tube fuses with holders soldered onto the red wire from the retracts – cover them fully with insulation tape or heat shrink.
These Pico fuses are smaller and lighter though with these fuse holders,  or these
PPTC resettable fuses recommended by Petri Junnila could be used.


LEG SERVO  CUSHION MOD: Recommended and suggested by Matt Kim.

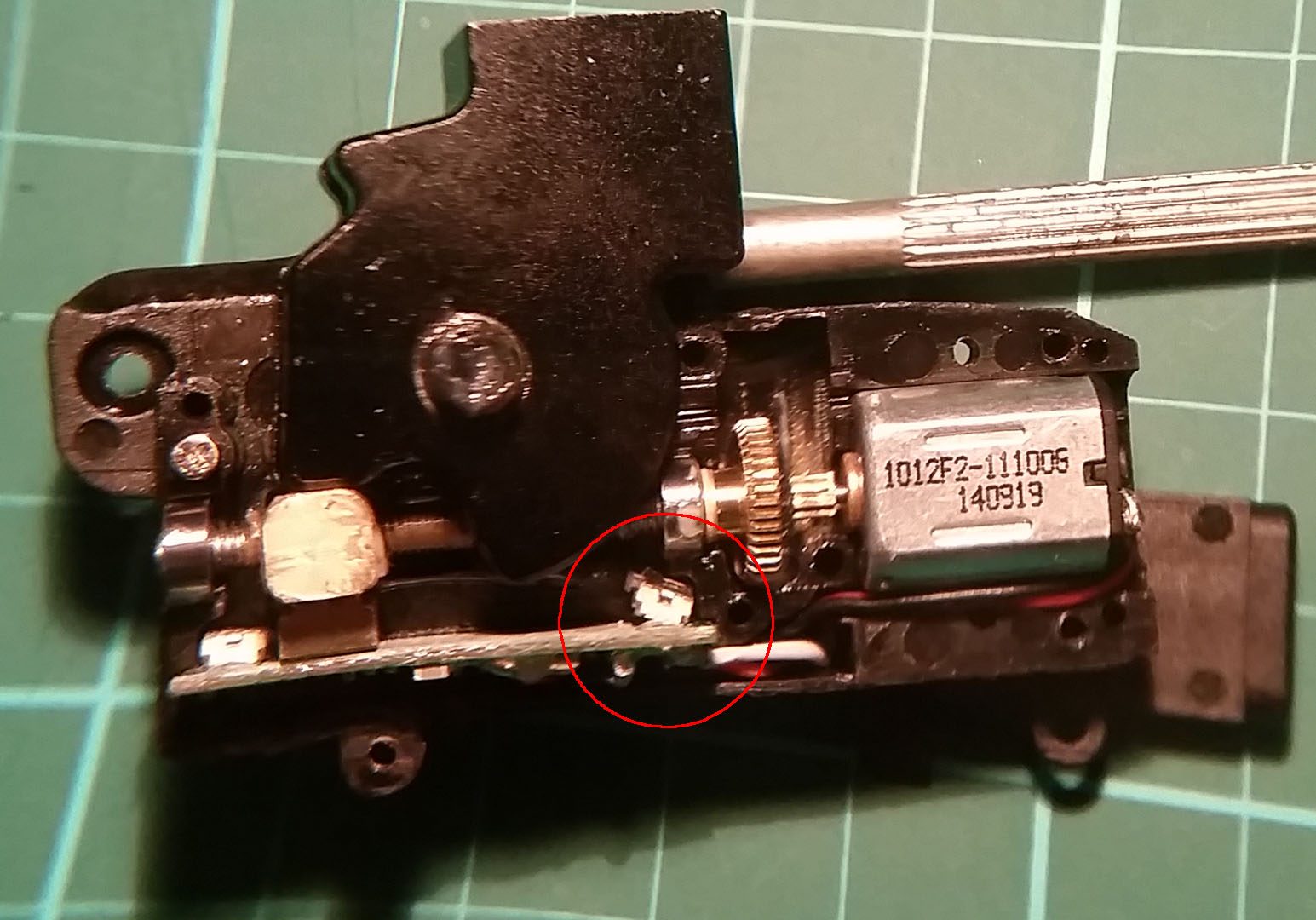

As can be see in the photo below, repeated use of the leg servo can cause a small switch inside to be pushed over by the brass riser which travels on the worm screw. This can not only cause the leg to stop retracting but can sometimes cause a short and take our your Scout’s mainboard too!! It is highly recomended to do the fuse mod above to save your mainboard as well as the following cushion mod to help prevent your retract from malfunctioning. You don’t need to pull the Scout body apart, just take off the legs and retracts.

Scout X4 Leg retract servo fail
Scout X4 Leg retract servo fail

Parts are VERY small including the screws and easy to lose – do this over a bench, you may need a magnifying glass and tweezers, it’s fiddly but not difficult. SEE PHOTO BELOW: undo (top left) hex head screws on both sides –  be careful not to lose the tube they support.
There are two larger screws on one side, these do not need to be undone. Undo the six small screws on the other side, the case will then split in half – be careful as things may fall out, don’t panic if they do, just don’t lose them.

Scout Leg retract  servo
Scout Leg retract servo

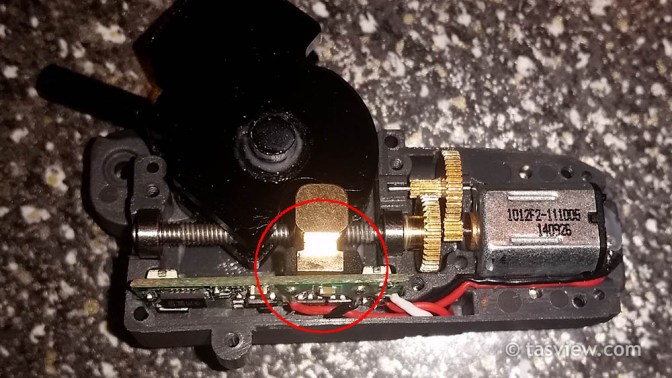

Retract cushion mod below: Clean the block surfaces with alcohol first. Place 3m extreme mounting tape or adhesive soft cussion on both sides of the brass block to cushion the switches at either end.

Leg Servo Cushion Mod
Leg Servo Cushion Mod

Assembly is reversal of instructions – use the photo above as a guide for re-assembly. Pleas not, someone else who had done this mod still had their retracts fail, but it should extend their life. You should also install some fuses like above.

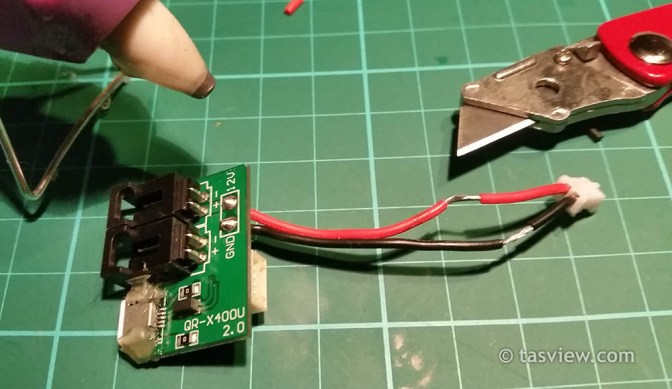

The Scout’s USB port is not attached to the PCB very will and has broken for several users. It is recommended to add some hot glue to strengthen as shown below. It’s fiddly and hard to get to. NOTE: You do not need to cut the wires as I have unless you want to add LED lights as shown further down – this is where I tapped into the 12V inside the Scout.


Scout USB & power PCB
Scout USB & power PCB

I took off the top gimbal controller and the tab at the back was no longer attached! Sorted it out with a bit of hot glue before it failed completely. I’d recommend this mod if you want your gimbal to last – it’s only 2 screws to undo. Matt Kim suggest leaving the screws slightly lose to give it some play.

Gimbal Controller Mod
Gimbal Controller Mod



LED LIGHTING MOD (optional):
Not necessary, but the lights pre-installed under each arm are very dim and useless in daylight so this will help with orientation at distances. There are quite a few variations of this in the Scout FB group, this is my take.

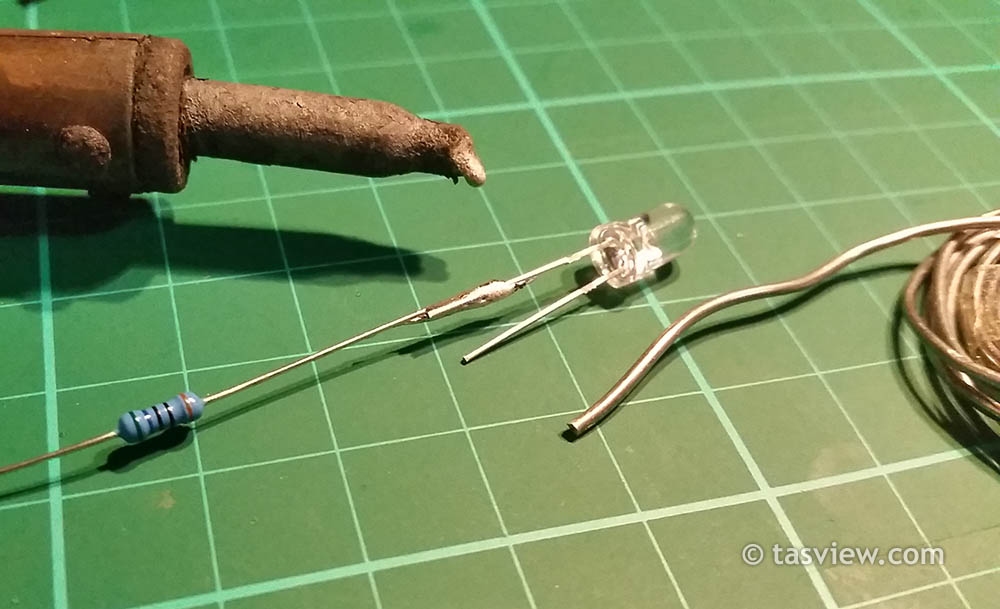

If using 5mm high vis LED’s you will need to solder a resistor to the positive (longer) leg to suit 12V as below.

LED resistor
LED resistor

Below shows my wiring, I added a switch and soldered it into the 12V wires shown in the USB port mod previously above. Make sure all wires are covered.

LED wiring
LED wiring

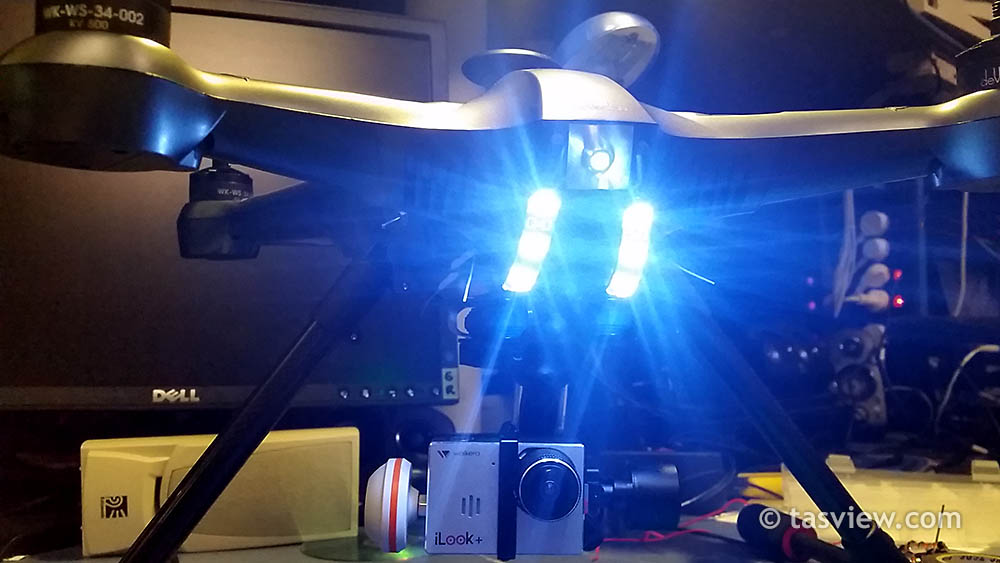

The end result:

Scout X4 LED mod
Scout X4 LED mod

If your not comfortable with soldering, an easy and effective mod is to find some suitable lightweight bike LED’s and mount attached to the legs as shown below.

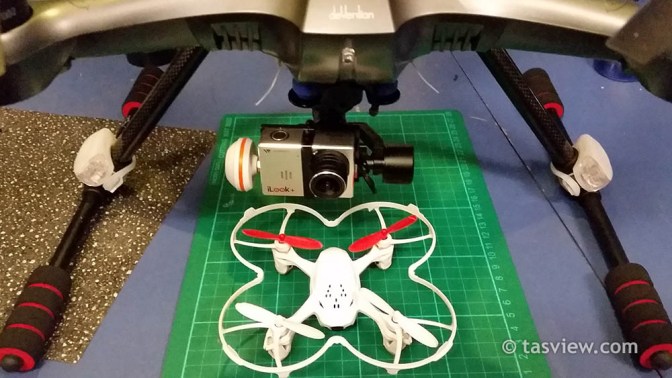

LED bike lights
LED bike lights, simple, easy and effective.

The first time I plugged in my USB cable the port broke off and fell inside – Another first to find. Undo the 4 screws on the back and put some hotglue around the USB and UART ports.
You should also check the USB ports on the Devention Pad Holder – there are two USB’s and mine were not soldered on very securely so I put more hotglue on them.

BT-2401B USB fail
BT-2401B USB fail

After balancing my Scout battery as normal for about the 30th time, the sliding switch started playing up. After some thought and discussion online, instead of replacing this main switch with another cheap slider, I replaced it with a mini toggle switch on to of the battery.

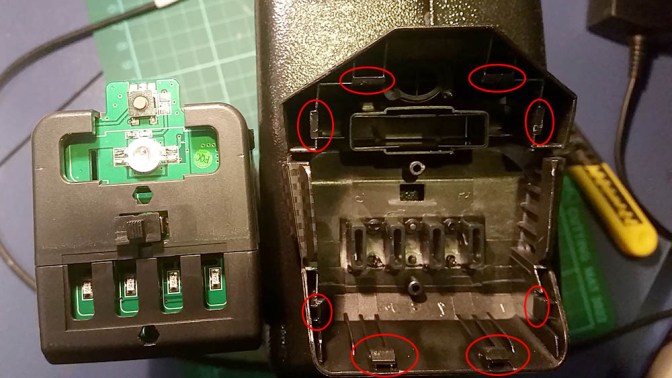

Remove the battery cover by gently levering off the tabs shown below, start at the bottom pulling outwards. There are two screws under the battery to remove, then seperate thetwo halves around the battery.

Scout X4 battery cover tabs location for removal.
Scout X4 battery cover tabs location for removal.

  Mike unsoldered the old switch and soldered two wires on for me which are soldered to a mini switch. The pins need to be bent before soldering so it will fit not as shown below.

Battery switch rewiring after hot glueing.
Rewiring to new battery switch after hot glueing. Oh, look, there’s that FQC sticker again – Failed Quality Control 😉

I put on some hotglue to insulate and strenghten the connections – there’s no need to be quite so generous 😉

Back of the switch after installation - a tight fit.
Back of the switch after installation – a tight fit.

For my switch a 6mm hole was drilled through the top of the battery cover, the switch poked through, the battery case with two screws and cover reassembled and more hot glue (I replaced this switch with a smaller mini-toggle switch).

Switch mod for Scout X4 Battery.
Switch mod for Scout X4 Battery.

Now hopefully it has a tail that keeps wagging 😉


Follow the instructions on page 11 of the Devo F12E manual to take apart the transmitter.

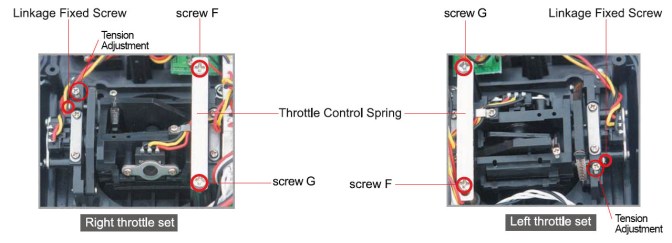

F12E Throttle Spring
Remove Screw F, Screw G and remove the Throttle Control Spring. Remove the Linkage Fixed Screw (on side) from the throttle.
Tension can be adjusted using the screw facing you near the Linkage Fixed Screw location.
Re-assemble your transmitter, your throttle will now have a centre spring. Remember, you will need to hold it in the 0% throttle bottom position when binding.



ANTENNA MODS (optional): (Section to be updated as I learn)
2.4GHz FOR CONTROLS: One of the easiest mods is to purchase a 2.4GHz 8dBi Omni-Directional Antenna like the TP-Link TL-ANT2408C and a SMA Male Plug To RP-SMA Female Plug RF Coaxial Adapter Connector (the adaptor has two male ends) to replace the supplied 2.4GHz antenna on the F12E controller. This will increase the controller range/distance. For best results it should be kept side on to the craft, not pointed directly at it.

5.8GHz FOR VIDEO: The default antennas for video have a limited range of around 300m. I am currently researching options to replace these antennas.
I’ve ordered the following parts for a GoPro3 setup – I will update my findings after intallation. The parts selected are budget items, there are better out there like the ibCrazy bluebeam sets but for me this is more about increasing the safety margin rather than how far away I can fly.

Boscam FPV 5.8G 200mW AV Wireless Transmitter TS351

5.8G 3 Leaves Omnidirectional Gain Antenna For Transmitter

5.8G 4 Leaves Omnidirectional Gain Antenna For Receiver

Gopro3 Video AV FPV cable

The transmitting and recieving cloverleaf antennas need to be positioned side on for best transmitting range, not pointed at each other.

Here is some information from my notes on antenna options:

immersionRC 250mw VTX
RX antenna to fly more than 1km on DevoF12E.…
Antenna on my Fatshark. you have to point at the Drone to get clear FPV.…
Fatshark goggles on the Scout –  default is ch8
TX5804 transmitter  Use the two cable in the spare parts bag. One goes to the gopro the other from the 5803 to the Scout 12v
Making the Best RF Shield for the GoPro Hero3 +
ON SCREEN DISPLAY (OSD) (optional): (Section to be updated as I learn)
The Scout’s default OSD is pretty inadequate. A MinimOSD will enhance telemetry and flight data information on your screen, using MAVLink protocol, for exmple, number of satelites fixed, directon of craft.
I have ordered these:
MinimOSD MAVLink OSD APM 2.6 APM 2.52 Flight Control Board40pcs 20cm Male to Female Jumper Cable For Arduino

SparkFun® FTDI Basic Breakout 5V (DEV-09716)

 For now, you can find out how to install on the  Facebook Walkera Scout X4 and Tali H500 Support Group I will update this as I do mine.

Dont forget to check out the SCOUT X4 GETTING STARTED GUIDE and the MISSION PLANNER SETTINGS PAGE for further recommended changes and tips!


*If you appreciate the time, effort and research gone into this website or if you feel it’s helped you avoid a crash, please give a mention in groups and forums or help us answer questions in the comments below 🙂
Thanks for visiting.



I have now abandoned my Scout and support for it and have built a DJI Flame Wheel F550 ARF kit.
This pages will still be hosted for your reference only, comments have been closed.
For further support, please join the new Facebook Walkera Scout X4 and Tali H500 Support Group and ask your questions there.

This page was last updated 19th March, 2015.
